Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate

Name: Plastic Temperature Aging Test Oven 270L 5Min Heating Rate
Brand: ASLI
Price: 1 USD

Wholesale Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate from china suppliers

Brand Name : ASLI

Model Number : RHD-90

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiate

Payment Terms : T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 15 workdays

Packaging Details : standard export plywood case

Internal Dimension : W600*H900*D500mm

Volume : 270 Liters

Temperature Range : (RT+15℃)~300℃

Temperature Control Accuracy : +/- 0.5℃

from R.T. to 200℃ : approx. 35mins

Control Method : Micro PID+SSR+Timer

Storage Shelf : Two layers

Heating Rate : 5℃/Min

Contact Now

5℃/Min Heating Rate Plastic Testing Machine Temperature Aging Test Oven

High Temperature Oven Technical Parameters

Model	RHD - 45	RHD - 60	RHD - 90	RHD - 120
Internal Dimension W×H×D(mm )	450×400×400	500×600×500	600×900×500	800×1200×700
External Dimension W×H×D(mm )	650×900×550	700×1200×650	850× 1600×700	1200× 1680×900
Interior and Exterior Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range	R.T. to 200; (300 to 500°C is optional)
Indication Resolution/ Distribution Uniformity of Temperature	0.1°C/±2.0°C;( When temperature is 100°C)
Control Accuracy of Temperature	±0.5°C;
Temperature Rising Velocity	Temperature rising velocity: from R.T. to 200°C,needs approx. 35mins
Control Method	Micro PID+SSR+Timer
Storage Shelf	Two layers
Viewing Window	When temperature is RT to 200°C ,with viewing widow When temperature is 200°C to 500°C ,without viewing widow
Power	AC 220V 50/60HZ ; AC 380V 50/60HZ

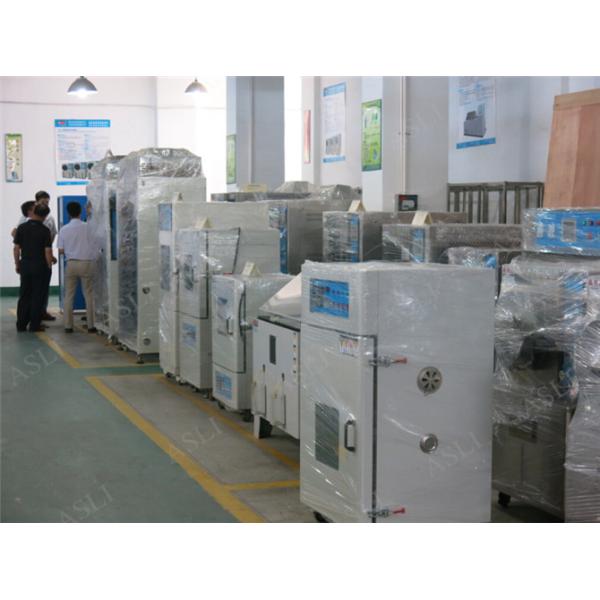

Product Pictures

Product Description

Freestanding electric oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.

Aging test oven Features

1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2.Use new high temperature resistant long shaft motor
3 Turbine fan.
4.Silicone forced tight
5.Over temperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Plastic Temperature Aging Test Oven 270L 5℃/Min Heating Rate n Heating Rate Plastic Testing Machine Temperature Aging Test Oven
